Functions:
Frequency Range: UHF:400-490MHz
Output Power: UHF: 45W/25W/10W
8 group's of scrambler
1750Hz Tone
CTCSS/DCS setting & scanning
0-9 SQL grade setting
Frequency/Channel scanning
High/Mid/Low power selectable
Voice commander
Repeater offset shift
Keypad lock function
Contact book
Battery voltage display
DTMF/2 tone/5 tone
ANI ID
Remote kill/ stun/ activate/ revive
Emergency alarm
Wide/Narrow band setting
TX inhibit
Busy Channel Lock-Out
Channel name editing
Reverse frequency
Talk around
Scrambler(Optional)
Voice prompt
Time-out Timer
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
　

General
Frequenvy Range: 400-480MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Receiver
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: [email protected] /70dB@25KHz
Adjacent Channel Selectivity: [email protected] 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter
RF Power: UHF: 45W/25W/10W
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥[email protected] /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%
　

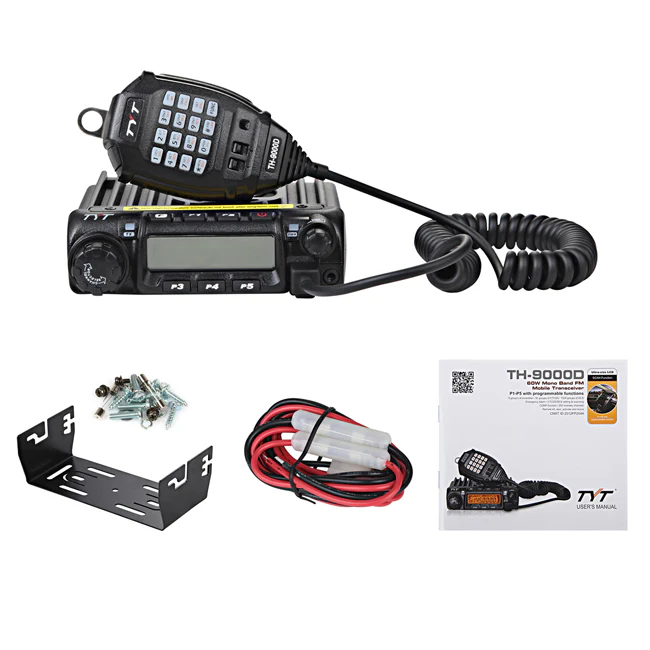

Package:

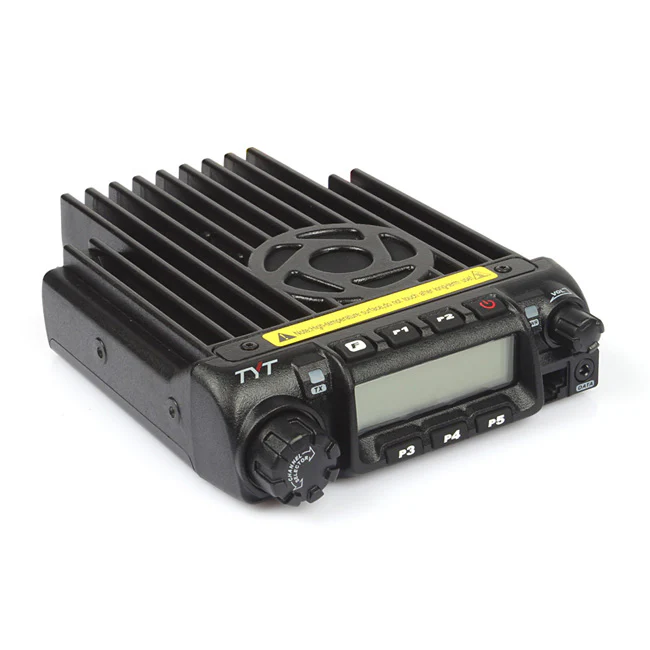

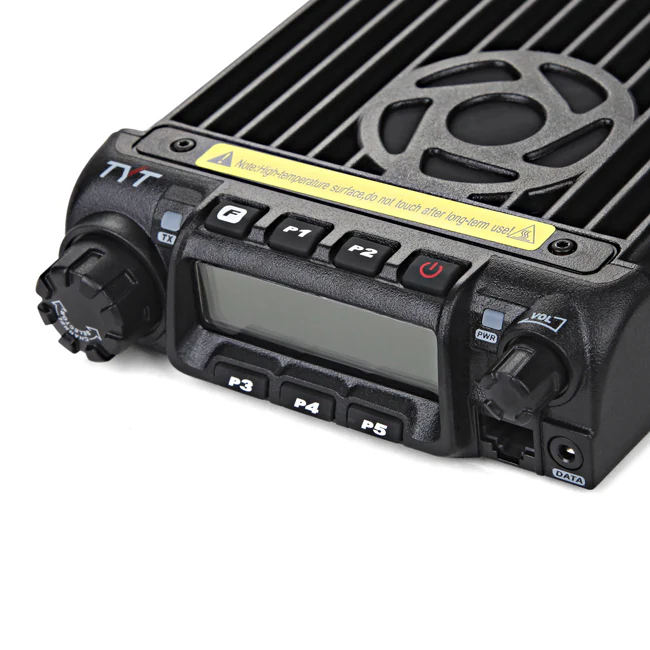

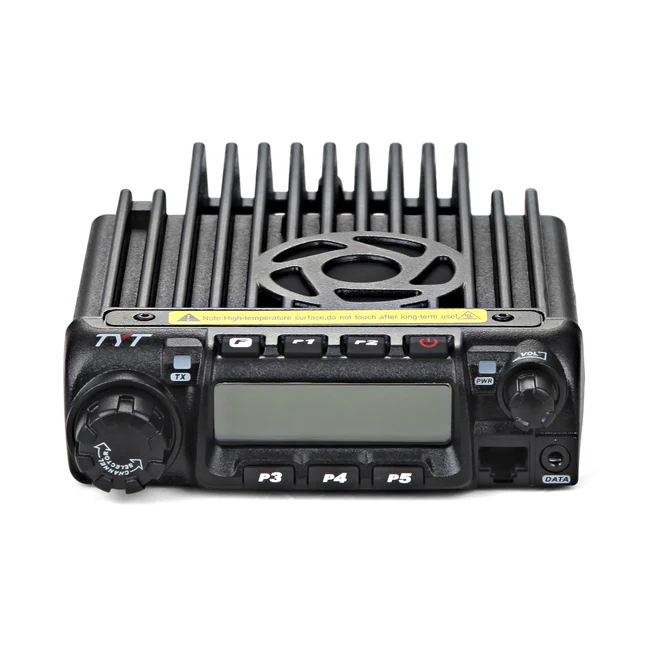

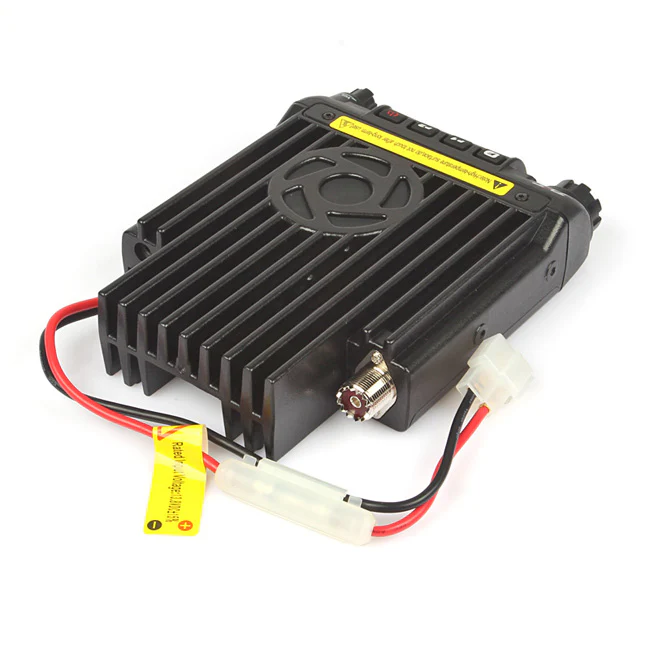

1x TYT TH-9000D Mobile Transceiver (400-480MHz)

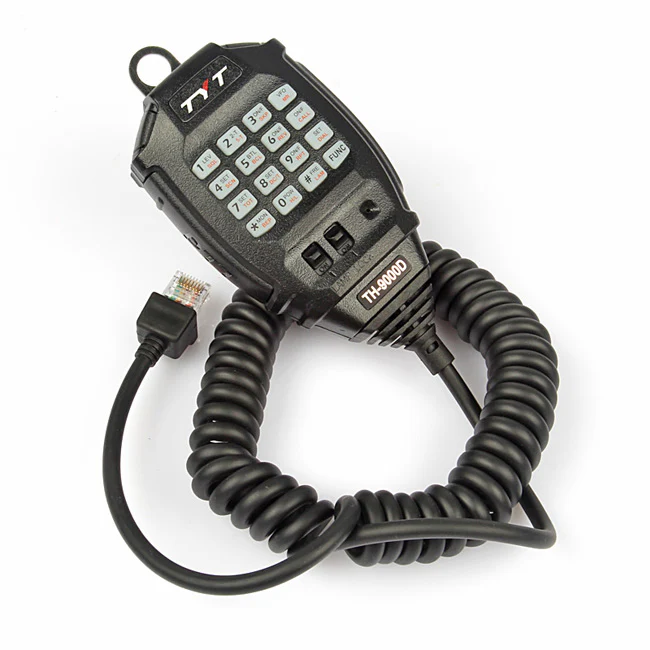

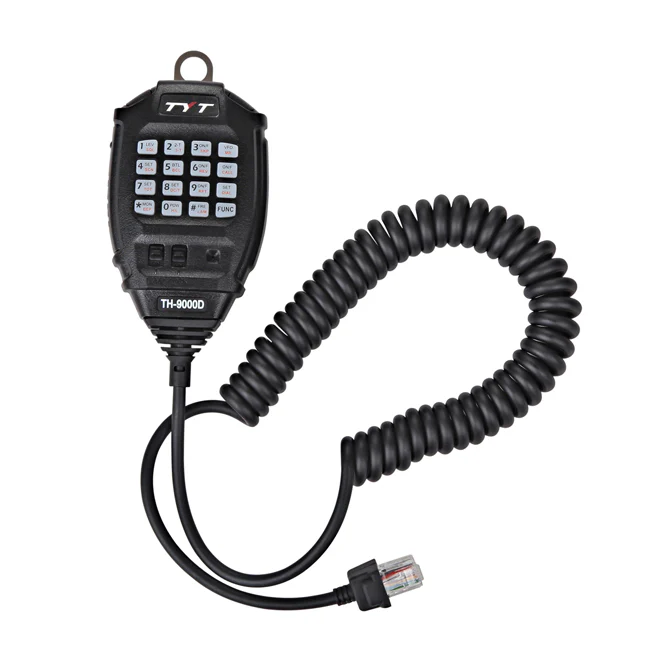

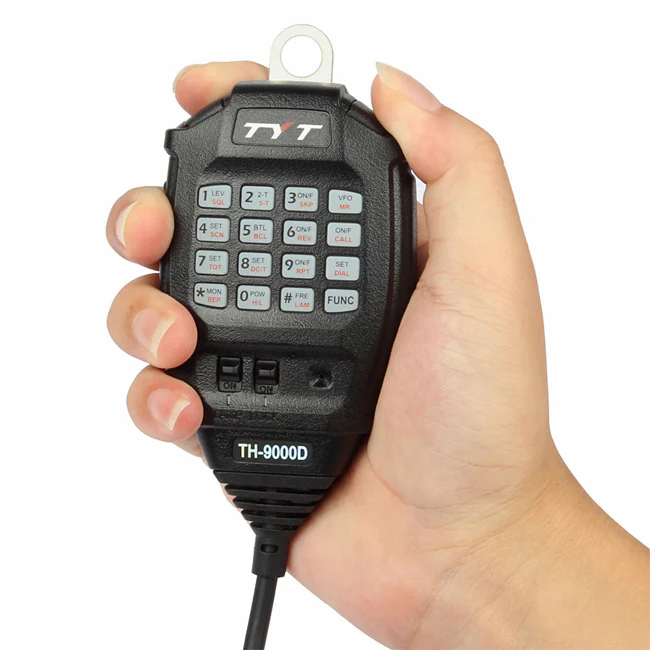

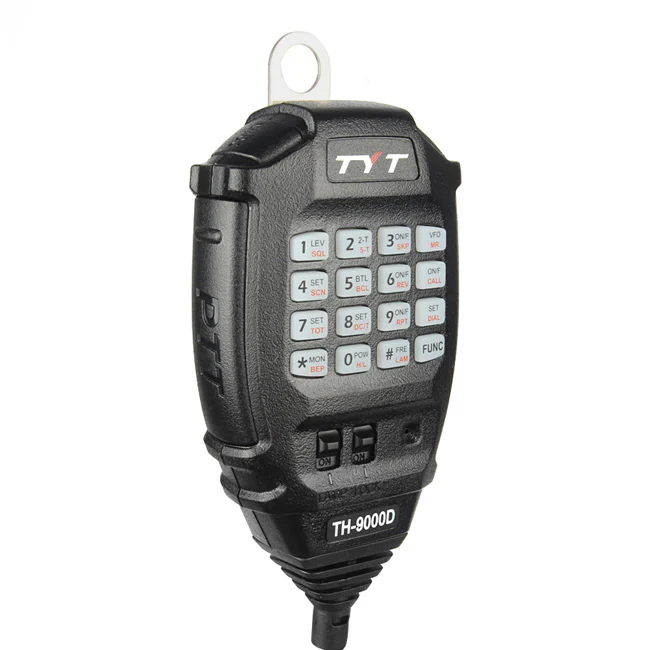

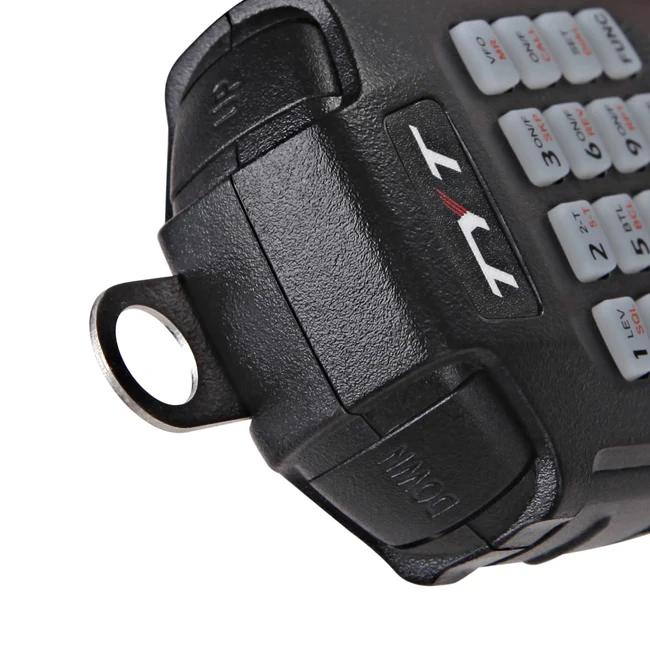

1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User's Manual
1x Fixed Bracket

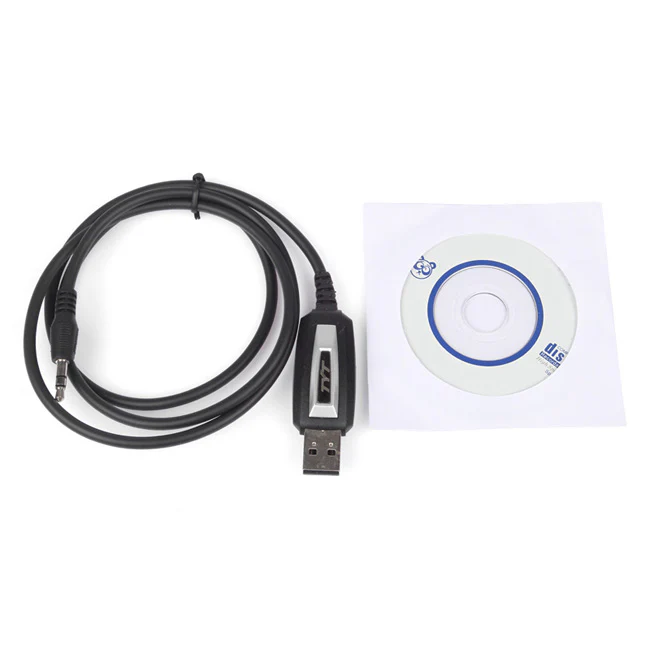

1x Programming Cable
